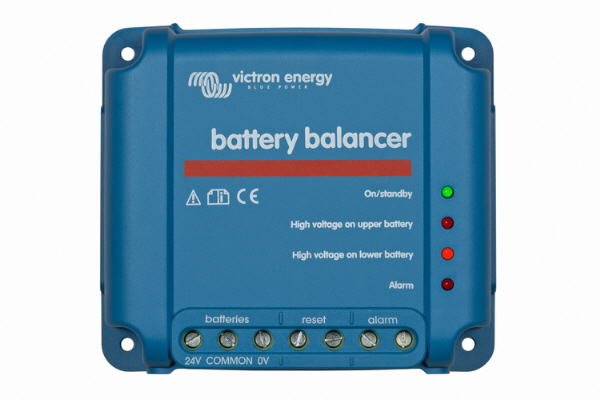

The Battery Balancer equalizes the state of charge of two
series connected 12V batteries, or of several parallel strings of
series connected batteries. When the charge voltage of a 24V
battery system increases to more than 27V, the Battery
Balancer will turn on and compare the voltage over the two
series connected batteries. The Battery Balancer will draw a
current of up to 1A from the battery (or parallel connected
batteries) with the highest voltage. The resulting charge
current differential will ensure that all batteries will converge to
the same state of charge.
If needed, several balancers can be paralleled.
A 48V battery bank can be balanced with three Battery
Balancers.
