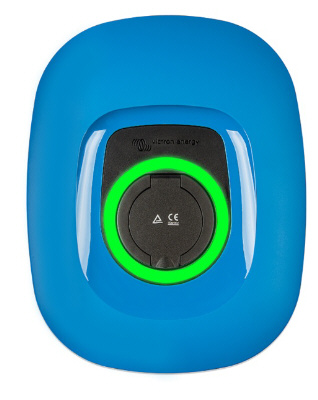

The EV Charging Station NS has three-phase and single-
phase capabilities. It delivers a maximum of 22kW AC in
three-phase or 7.3kW in single-phase mode.
The device is technically identical to the EV Charging Station,
but with a new, modern design available in 3 colours and
without the built-in LCD screen. Initial setup, configuration and
monitoring is done from VictronConnect via Bluetooth and/or
the integrated web interface via a WiFi Access Point or a WiFi
LAN.
The charger can be fully integrated with and remotely
controlled via a Victron Energy GX Device and VRM.
Not only does this EV Charging Station NS fully integrate with
a Victron Energy GX device and VRM, if you have solar (within
the Victron ecosystem), it can also be set up to allow excess
energy from the sun to directly charge your vehicle. Manual
and scheduled modes offer even more flexibility to respond to
the needs of the EV depending on the system.
It has a fully programmable RGB light ring around the charging
port that displays different light effects depending on the
current status (disconnected, charging, charged, etc.) to
quickly determine the device status.
